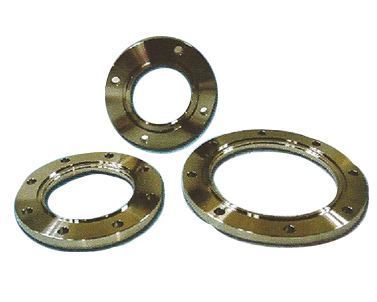

[-] VG BOLTED FLANGE
| 규격(UNIT:㎜) | A(Ø) | B(Ø) | C(Ø) | D(T) |
| VG25 | 34 | 80 | 49 | 8 |
| VG40 | 48.6 | 105 | 64 | 10 |
| VG50 | 60.5 | 120 | 79 | 10 |
| VG65 | 76.3 | 145 | 94 | 10 |
| VG80 | 89.1 | 160 | 109 | 12 |
| VG100 | 114.3 | 185 | 129 | 12 |
| VG150 | 165.2 | 235 | 184 | 12 |
| VG200 | 216.3 | 300 | 239 | 16 |
| VG250 | 267.4 | 350 | 289 | 16 |
| VG300 | 318.5 | 400 | 339 | 16 |
