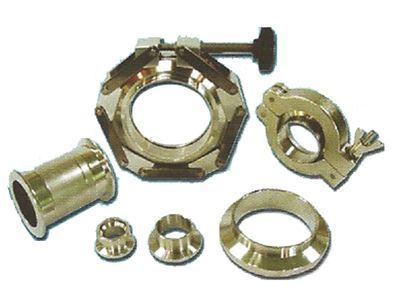

[-] KF FLANGE(OUT)
| 규격(UNIT:㎜) | A(Ø) | B(Ø) | C(T) |
| NW10 | 12.7 | 30 | 20 |
| NW16 | 19.05 | 30 | 20 |
| 21.7 | 30 | 20 | |
| 25.4 | 30 | 20 | |
| NW25 | 25.4 | 40 | 20 |
| 27.2 | 40 | 20 | |
| 34 | 40 | 20 | |
| NW40 | 38.1 | 55 | 20 |
| 42.7 | 55 | 20 | |
| 48.6 | 55 | 20 | |
| NW50 | 50.8 | 75 | 20 |
| 60.5 | 75 | 20 | |
| NW63 | 63.5 | 95 | 20 |
| 76.3 | 95 | 20 | |
| NW80 | 76.3 | 114 | 20 |
| 89.1 | 114 | 20 | |
| NW100 | 101.6 | 134 | 20 |
| 114.3 | 134 | 20 |
