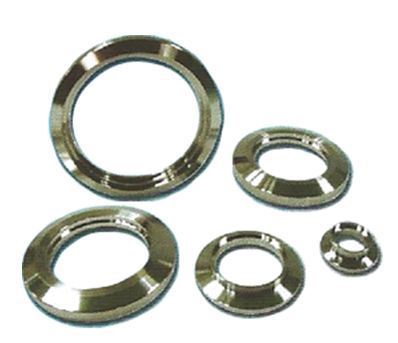

[-] KF FLANGE(IN)
| 규격(UNIT:㎜) | A(Ø) | B(Ø) | C(T) |
| NW25 | 25.4 | 40 | 5 |
| NW40 | 38.1 | 55 | 5 |
| NW50 | 50.8 | 75 | 5 |
| NW63 | 63.5 | 95 | 12 |
| 76.3 | 95 | 12 | |
| NW80 | 76.3 | 114 | 12 |
| 89.1 | 114 | 12 | |
| NW100 | 101.6 | 134 | 12 |
| 114.3 | 134 | 12 | |
| NW125 | 127 | 160 | 12 |
| 139.8 | 160 | 12 | |
| NW160 | 152.4 | 190 | 12 |
| 165.2 | 190 | 12 | |
| NW200 | 216.3 | 240 | 12 |
