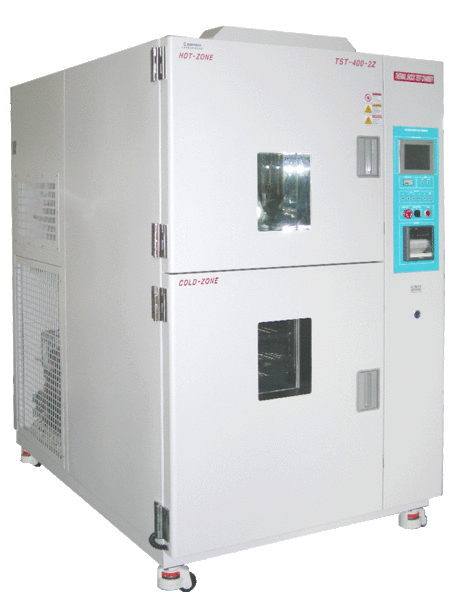

[STST-200/300/400] 열충격시험기

Thermal Shock Tester
열충격시험기

FEATURE

- 열충격시험기는 시료에 고온과 저온의 온도를 순간적으로 조성하여 SOLDERING상태 및 균열여부를 확인하고, 고/저온의 극한환경에서 시료의 내구성을 실험하는 장비입니다. - 2-ZONE TYPE의 경우, 시료실이 고온실과 저온실을 빠르게ELEVATOR방식으로 이동하여 시료실의 온도를 급격히 변화시킴으로써 냉각 및 가열 등 열충격 변화상태를 시험할 수 있고, 적은 공간에서도 쉬운 동작으로 고정밀 시험데이터를 얻을 수 있는 장비입니다. 특히, 열충격 시험외에도 건조 및 저온챔버로도 사용할 수 있으며, 고성능/고효율성을 만족시켜 드립니다. - 3-ZONE TYPE의 경우, 시료실 고온실/저온실이 따로 분리되어 있으며, 각 실이 자동 DAMPER 개/폐 방식으로 작동합니다. (고온실↔시료실↔저온실)



2Zone SPECIFICATIONS
MODEL	STST-200-2Z	STST-300-2Z	STST-400-2Z
Case Part
Chamber material	SUS304, 1.2t, polished
External material	SS41, 1.2t, steel plate with baked coating finished
Insulations	Poly-urethane foam & glass wool
Door packing	Double silicon rubber
Test Chamber Part
Test Chamber Size (W*D*H/mm)	300*200*150	300*300*300	400*400*400
Temp. test range	-50°C ~ +150°C
Low temp. test range	RT ~ -50°C
High temp. test range	RT ~ +150°C
Test restoration time	Within 5min
Temp. test delay time	30min 이상
Temp. stability	±0.5°C
Temp. uniformity	±1.0°C
SUS Shelves	SUS mesh type, 1ea
Controller Part
Controller	Touch screen type programmable controller (RS232, RS485 interface)
Temp. sensor	CA-type
Recorder	SR-1000 (Yokogawa), 6point Dot type Temp. range :-100°C~+200°C Input:0~5V
High Temp. chamber Part
Temp. range	RT ~ +150°C
Temp. heat-up rate	RT ~ +150°C within 30min
Temp. heater	SUS pipe fin heater
Convection	SUS sirocco fan & motor, 1set
Low Temp. chamber Part
Temp. range	RT~ -50°C
Temp. heat-up rate	RT - 60°C within 60min
Temp. heater	SUS pipe fin heater
Convection	SUS sirocco fan & motor, 1set
Refrigerator system	Dual freezing system 1stage:R404a, 2sage:R23 Air cooling system 기계실 일체형 및 실외기형 선택
Safety device	Main current breaker Over temp. protector Emergency s/w Motor over load relay (EOCR) Regrigerator overload relay (EOCR) Refrigerator high/low pressure s/w Trouble screen message
Power	3Ph, 380V,60Hz



3Zone SPECIFICATIONS
MODEL	STST-300-3Z	STST-400-3Z	STST-500-3Z
Case Part
Chamber material	SUS304,1.2t, polished
External material	SS41,1.2t,steel plate with baked coating finished
Insulations	Poly-urethane foam & glass wool
Door packing	Double silicon rubber
Test Chamber Part
Test Chamber Size (W*D*H/mm)	300*300*300	400*400*400	500*500*500
Temp. test range	-50°C ~ +150°C
Low temp. test range	RT ~ -50°C
High temp. test range	RT ~ +150°C
Test restoration time	Within 5min
Temp. test delay time	30min 이상
Temp. stability	±0.5°C
Temp. uniformity	±1.0°C
SUS Shelves	Hole punching type or wire type, 2ea
Damper system	Hot Zone Damper, 2set Cold Zone Damper, 2set VentZone Damper, 2set Damper Open/Close cylinder, 6set Vent blower(1/2HP), 1set Air Pressure Range: 4-7kg/cm Air Compressor 포함되지 않음
Controller Part
Controller	Touch screen type programmable controller (RS232, RS485 interface)
Temp. sensor	CA-type
Recorder	SR-1000 (Yokogawa), 6point Dot type Temp. range :-100°C~+200°C Input:0~5V
High Temp. chamber Part
Temp. range	RT ~ +150°C
Temp. heat-up rate	RT ~ +150°C within 30min
Temp. heater	SUS pipe fin heater
Convection	SUS sirocco fan & motor, 1set
Low Temp. chamber Part
Temp. range	RT~ -50°C
Temp. heat-up rate	RT - 60°C within 60min
Temp. heater	SUS pipe fin heater
Convection	SUS sirocco fan & motor, 1set
Refrigerator system	Dual freezing system 1stage:R404a, 2sage:R23 Air cooling system 기계실 일체형 및 실외기형 선택
Safety device	Main current breaker Over temp. protector Emergency s/w Motor over load relay (EOCR) Regrigerator overload relay (EOCR) Refrigerator high/low pressure s/w Trouble screen message
Power	3Ph, 380V, 60Hz

* 상기 제품사양 및 특수사양은 협의제작 가능합니다.
